DS1307

说明

RTC芯片，为没有RTC的系统提供实时时钟。

个人使用说明

为MT7688添加实时时钟

操作系统为openwrt,内核为Linux。主要步骤如下:

• 将DS1307的I2C与MT7688的I2C总线相连
• 在openwrt的menuconfig启用CONFIG_PACKAGE_kmod-i2c-mt7628(> Kernel modules > I2C support > kmod-i2c-mt7628)与CONFIG_PACKAGE_kmod-rtc-ds1307(> Kernel modules > Other modules > kmod-rtc-ds1307)
• 在设备树(dts)中添加ds1307的配置,如

  &i2c {
  	status = "okay";
  	ds1307: rtc@68 {
  		compatible = "dallas,ds1307";
  		reg = <0x68>;
  	};
  };


注:以上步骤均在openwrt-22.03中通过测试。

Linux 5.10中关于DS1307的配置说明:

Dallas DS1307 and compatible RTC

Required properties:
- compatible: should be one of:
	"dallas,ds1307",
	"dallas,ds1308",
	"dallas,ds1337",
	"dallas,ds1338",
	"dallas,ds1339",
	"dallas,ds1388",
	"dallas,ds1340",
	"dallas,ds1341",
	"maxim,ds3231",
	"st,m41t0",
	"st,m41t00",
	"st,m41t11",
	"microchip,mcp7940x",
	"microchip,mcp7941x",
	"pericom,pt7c4338",
	"epson,rx8025",
	"isil,isl12057"
	"epson,rx8130"
- reg: I2C bus address of the device

Optional properties:
- interrupts: rtc alarm interrupt.
- clock-output-names: From common clock binding to override the default output
                      clock name
- wakeup-source: Enables wake up of host system on alarm
- trickle-resistor-ohms : ds1339, ds1340 and ds 1388 only
	Selected resistor for trickle charger
	Possible values are 250, 2000, 4000
	Should be given if trickle charger should be enabled
- aux-voltage-chargeable: ds1339, ds1340, ds1388 and rx8130 only
	Tells whether the battery/supercap of the RTC (if any) is
	chargeable or not.
	Possible values are 0 (not chargeable), 1 (chargeable)

Deprecated properties:
- trickle-diode-disable : ds1339, ds1340 and ds1388 only
	Do not use internal trickle charger diode
	Should be given if internal trickle charger diode should be disabled
	(superseded by aux-voltage-chargeable)

Example:
	ds1339: rtc@68 {
		compatible = "dallas,ds1339";
		reg = <0x68>;
		interrupt-parent = <&gpio4>;
		interrupts = <20 0>;
		trickle-resistor-ohms = <250>;
	};

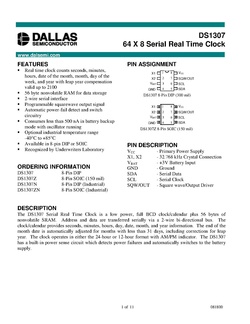

官方/alldatasheet资料
